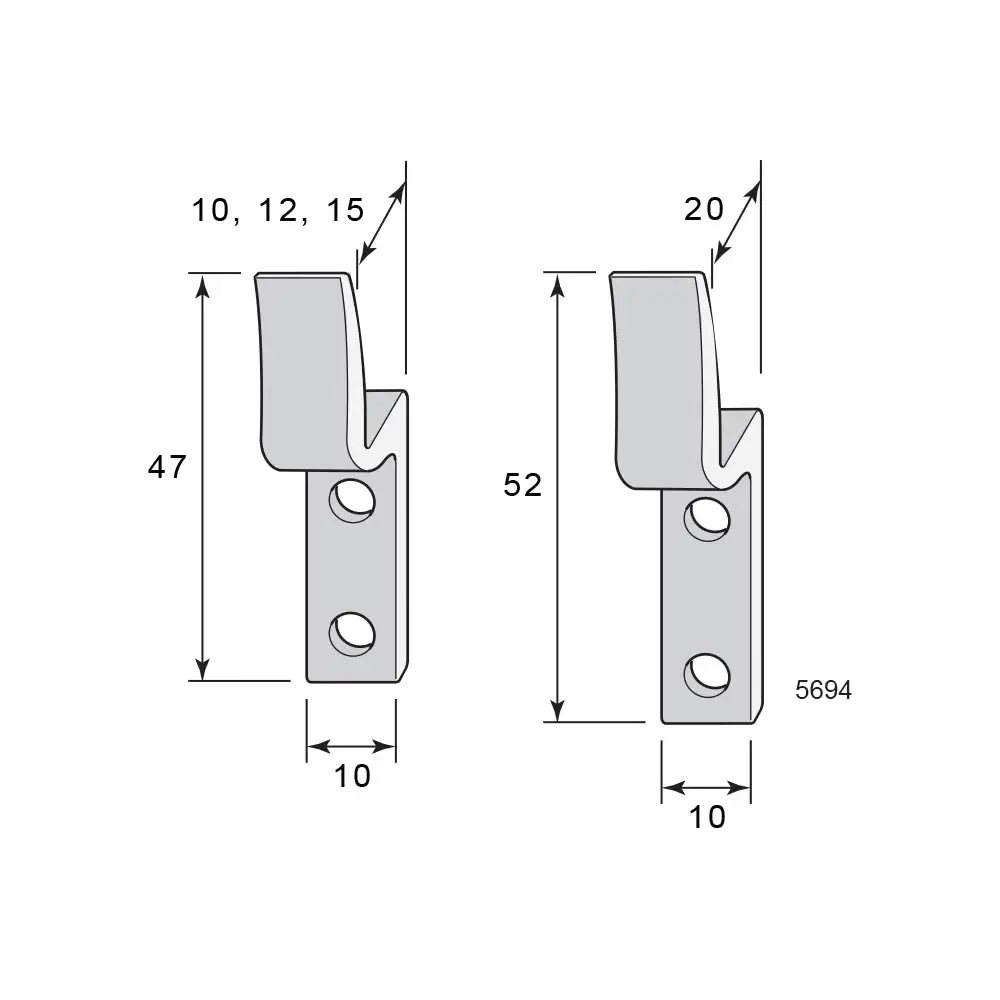

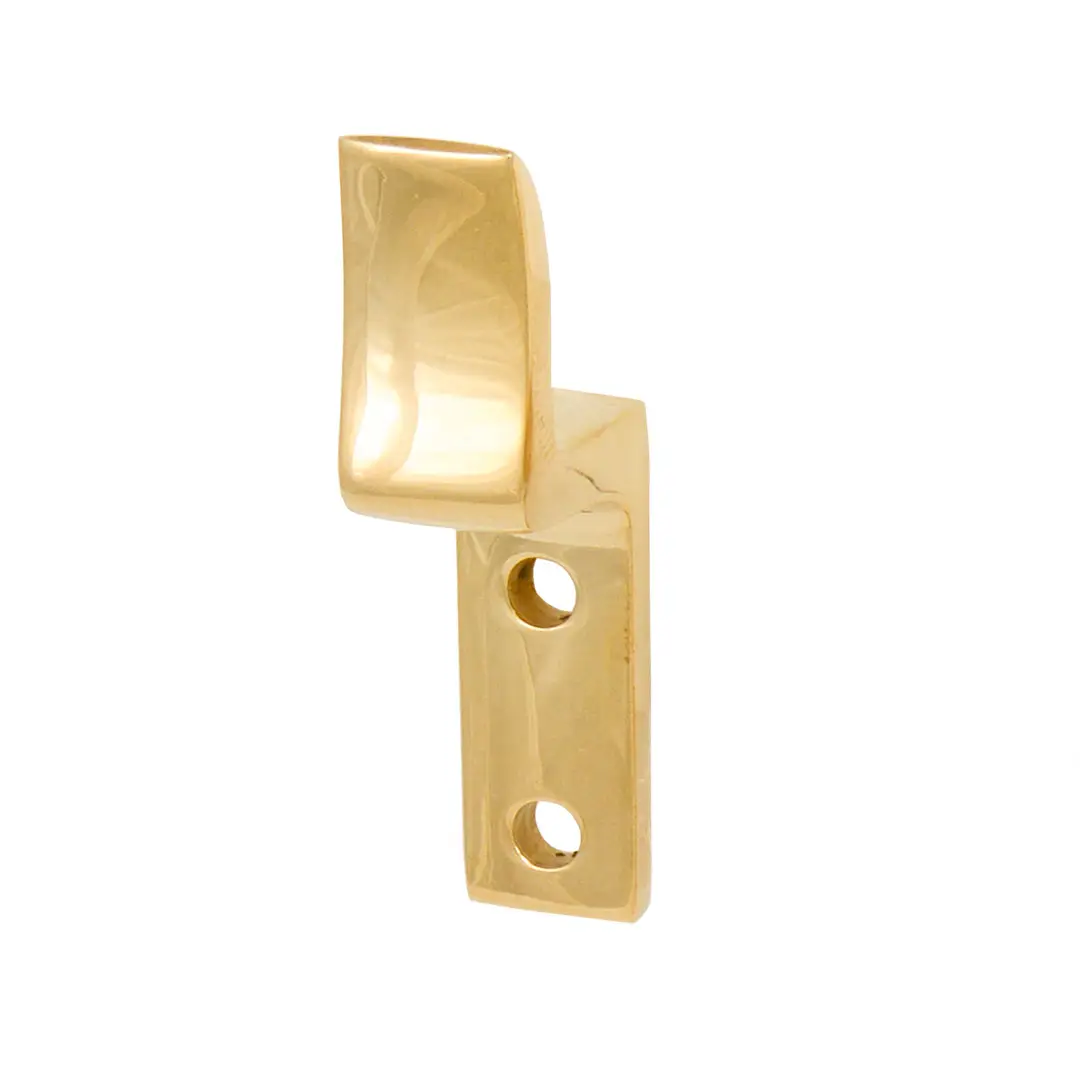

Hook 5694 Brass 10 mm

An elevation plate or spacer plate is often needed when installing a weatherization fitting on inward opening windows. The thickness of the sash and the distance to the window frame can vary and an elevation plate helps to mount in a neat way. Usually there is a difference of about 5-20 mm and then you need to buy corresponding elevation plates to ensure a good installation.

Elevation washers may also be needed when installing weatherization fittings for outward opening windows. For example, when you have stucco or profiles in the window sash or window sill that do not allow you to mount the weatherization fitting where you want.

Brass window screw for fixing window sashes. Two parts, a screw that is screwed through the sash and a counter plate that is attached to the window center post. Model of 1800-1900s type.

Hinges with the same function as hinges with angled pins, but made of thinner material and with slightly narrower dimensions. Can also be used in combination with angled pins.

Hot-dip galvanized iron. Thickness 1mm. Diameter pin 2,5mm. Width unfolded 37mm.

Screw not included. Suitable screw no 19 or TFS 6×3/4″

Role model Aug Stenman No 610

The period 1880 – 1975

Screw not included

Matching screw number 17
