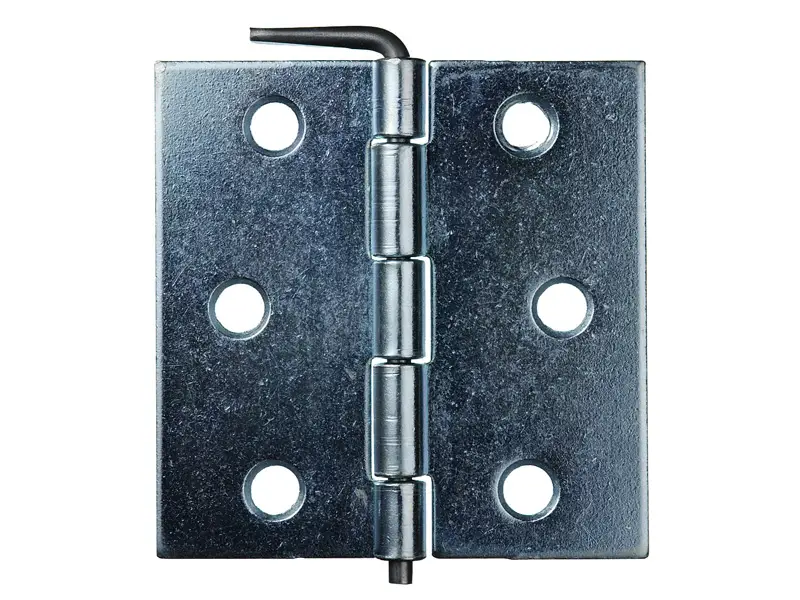

Hinge with loose v-groove complete

SKU: 3031-35

Hinge with loose v-groove complete

EUR2.93

Available in central stock
Quick facts

Additional Information

Weight0.03 kg
Height

50 mm

Width

50 mm

Screw included

no

Material

hot-dip galvanized iron

Thickness

1.5 mm

Leaf hinge with a loose angled pin, especially suitable for hanging interior windows that cannot be lifted off.

Dimensions and design similar to the most common interior window hinges at the turn of the century. Facilitates the work with old interior windows, as you can easily hang the arches, instead of screwing them.

Excellent to use in combination with our leaf bars and our folding boom fittings.

The angle clamp has a comfortable lifting angle and is easy to release if you want to remove the sashes.

Hot-dip galvanized iron. Thickness 1.5 mm, height 50 mm, width unfolded 50 mm, diameter pin 2.5 mm. Screw not included. (Suitable screw no 19 or TFS 5×3/4″)

Description

Leaf hinge with a loose angled pin, especially suitable for hanging interior windows that cannot be lifted off.

Dimensions and design similar to the most common interior window hinges at the turn of the century. Facilitates the work with old interior windows, as you can easily hang the arches, instead of screwing them.

Excellent to use in combination with our leaf bars and our folding boom fittings.

The angle clamp has a comfortable lifting angle and is easy to release if you want to remove the sashes.

Hot-dip galvanized iron. Thickness 1.5 mm, height 50 mm, width unfolded 50 mm, diameter pin 2.5 mm. Screw not included. (Suitable screw no 19 or TFS 5×3/4″)

Additional Information

Weight0.03 kg
Height

50 mm

Width

50 mm

Screw included

no

Material

hot-dip galvanized iron

Thickness

1.5 mm

Reviews

There are no reviews yet

Be the first to review “Hinge with loose v-groove complete”

Your email address will not be published. Required fields are marked *

You may also need to

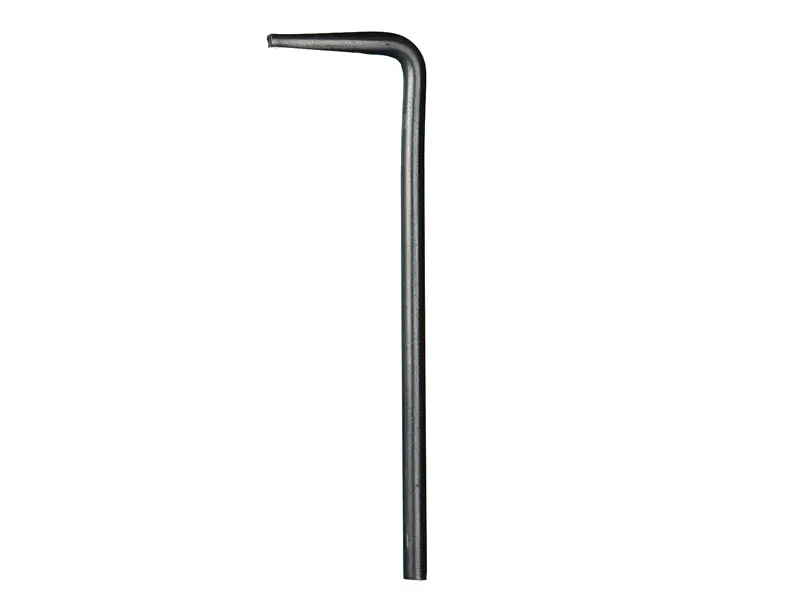

Loose angular sprint
